Tall Chelsea townhouses
One home may combine screeded floors, retained timber joists and rooms where floor level cannot be substantially raised. The zones should follow how the house is used—not divide it into equal areas.
Underfloor heating · Chelsea SW3 & SW10
Underfloor Heating Installation in Chelsea
Designed around the building, the floor and the finished interior.
PEP designs, supplies and installs complete wet and electric underfloor heating systems for Chelsea homes—from period townhouses and mansion-block apartments to lower-ground extensions and contemporary riverside properties.
01Complete Wunda system packages
02Wet & electric underfloor heating
03Design, controls & commissioning
Designed for the finished interior
The floor you want to see determines the system hidden beneath it.
A Chelsea refurbishment may include herringbone engineered oak through the reception rooms, marble in the entrance hall, porcelain in the kitchen and carpet upstairs. Each material transfers heat differently and may place its own limits on surface temperature, adhesive, underlay or installation method.
PEP reviews the intended finishes before the system is ordered. We coordinate the complete build-up—from the structural floor and insulation to heating components, screed or overlay board, decoupling layers, adhesives and floor coverings.
That early coordination protects door thresholds, stairs, skirtings, fitted joinery, fireplaces, bathroom falls and transitions between retained and rebuilt floors.
SW3Old Chelsea & Sloane Square
SW10West Chelsea & riverside
1Coordinated PEP team
Different buildings, different answers
Underfloor heating for Chelsea townhouses and apartments.
A system appropriate for a new lower-ground extension may be completely unsuitable for an upper-floor room with retained timber joists.
Mansion blocks and apartments
Floor height, acoustics, access, manifold position and alterations to shared services must be confirmed before the floor is opened. Lease, freeholder or building-manager requirements may also apply.
Lower-ground extensions
A rebuilt floor offers the best opportunity to coordinate insulation, pipe spacing and screed depth from the beginning—before doors, stairs and kitchen levels are fixed.
Modern and riverside homes
Contemporary apartments may have communal heating or existing UFH. We first establish how heat reaches the apartment and where the owner’s responsibility begins and ends.
Wet or electric?
Choose by area, duty and running pattern—not habit.
A heat-loss assessment establishes whether the usable heated floor can meet the room demand and whether supplementary emitters are needed.
Water-based
Complete rooms and larger areas
Usually the stronger option for living spaces, lower-ground refurbishments, whole floors and multi-zone systems integrated with a boiler or heat pump.
Electric
Carefully selected spaces
Practical for bathrooms, en suites and compact tiled areas where extending water pipework would add disproportionate disruption.
Combined
Two systems, one control plan
Wet heating in principal rooms and electric warming in selected bathrooms can work together when each has a clearly defined role.
Four constructions, four answers
The installation method follows what is already beneath the room.
The chosen system must deliver the required output while respecting floor height, retained structure, acoustic layers and the final finish.

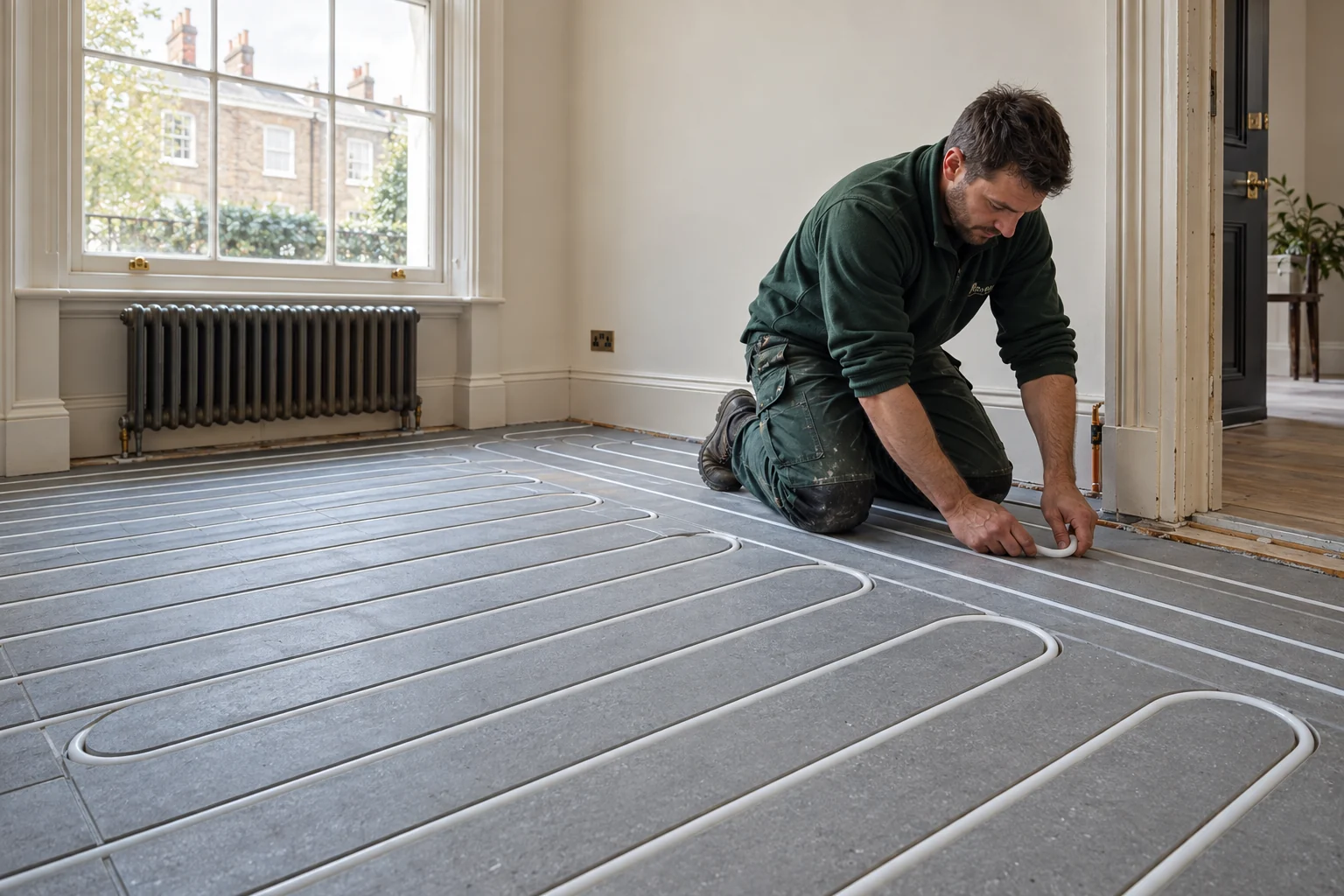

01 · Retained solid floors
Low-profile overfloor heating
Where the existing structural floor is sound, a low-profile water-based system can provide a responsive retrofit route without excavating the complete floor. Preparation, panel, decoupling, adhesive and finish are all included in the level calculation.

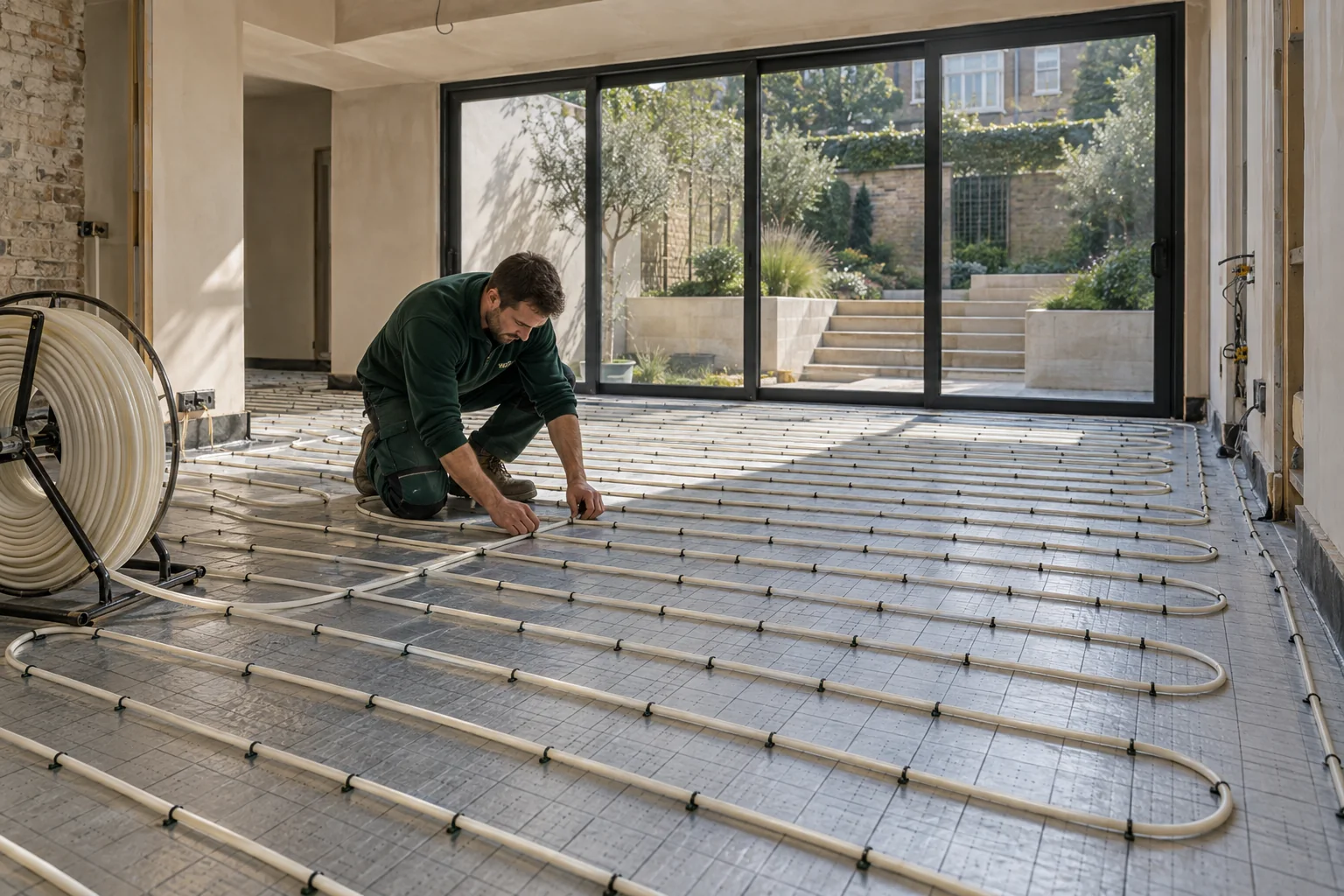

02 · New and rebuilt floors
Screed underfloor heating
Pipework is fixed over insulation before screed. Insulation, pipe spacing, movement joints, screed type and the commissioning programme are coordinated as one construction.

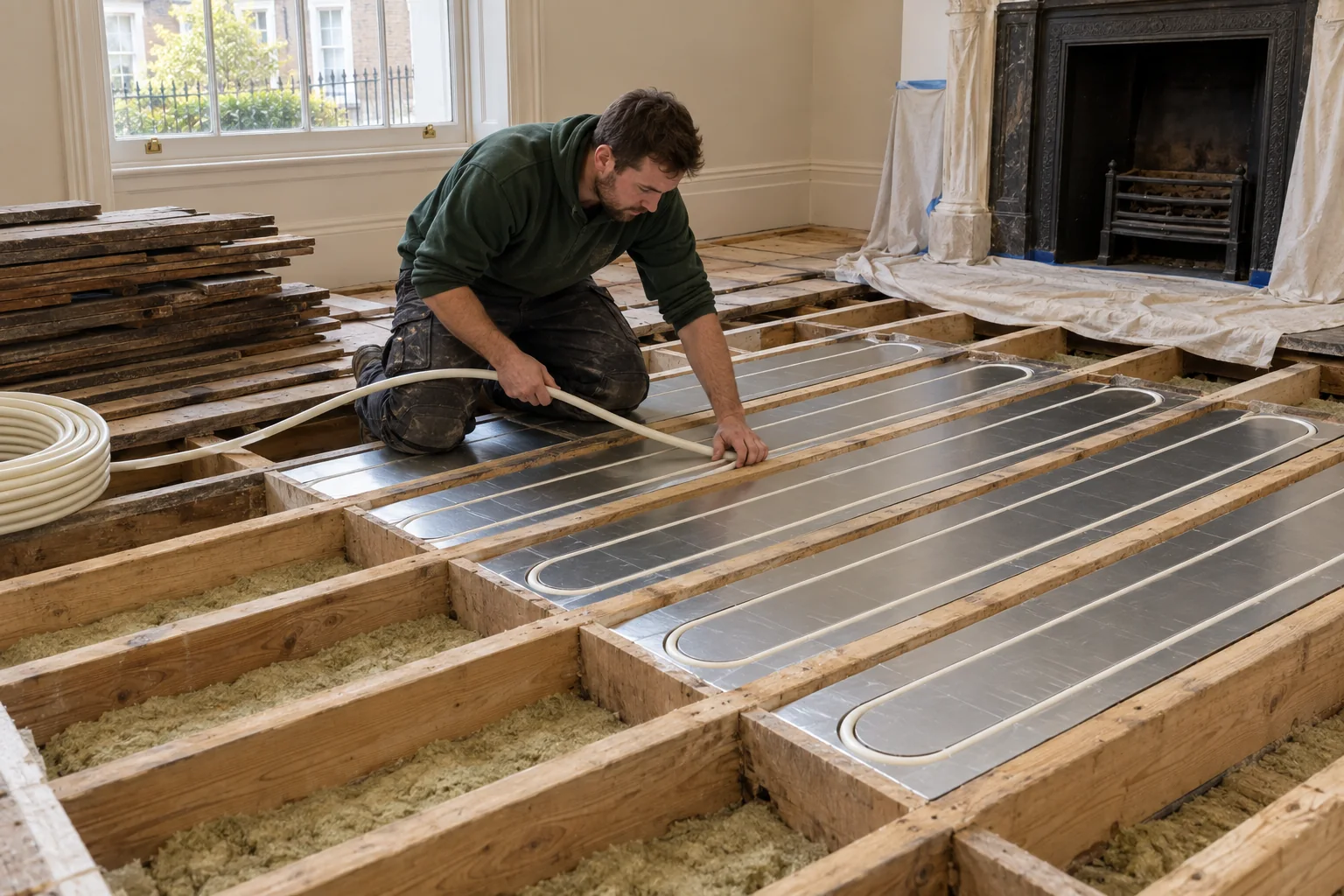

03 · Suspended timber floors
Joisted underfloor heating
Joist direction, supported heat spreaders, pipe routes, insulation and future access are resolved before installation begins.

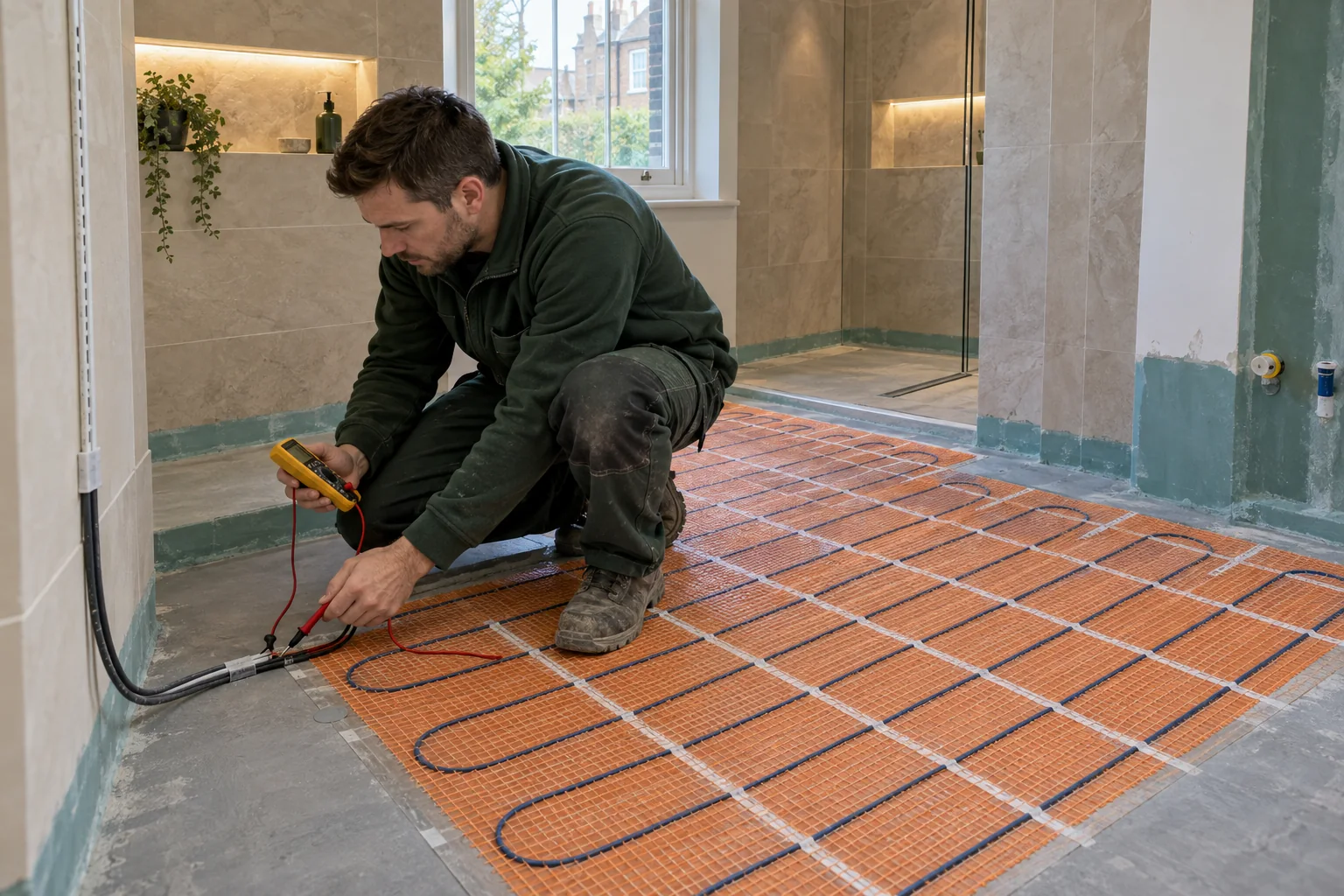

04 · Targeted rooms
Electric underfloor heating
Heating layout, fixed furniture, supply, thermostat, floor sensor, protective devices and test stages are planned as one electrical installation.

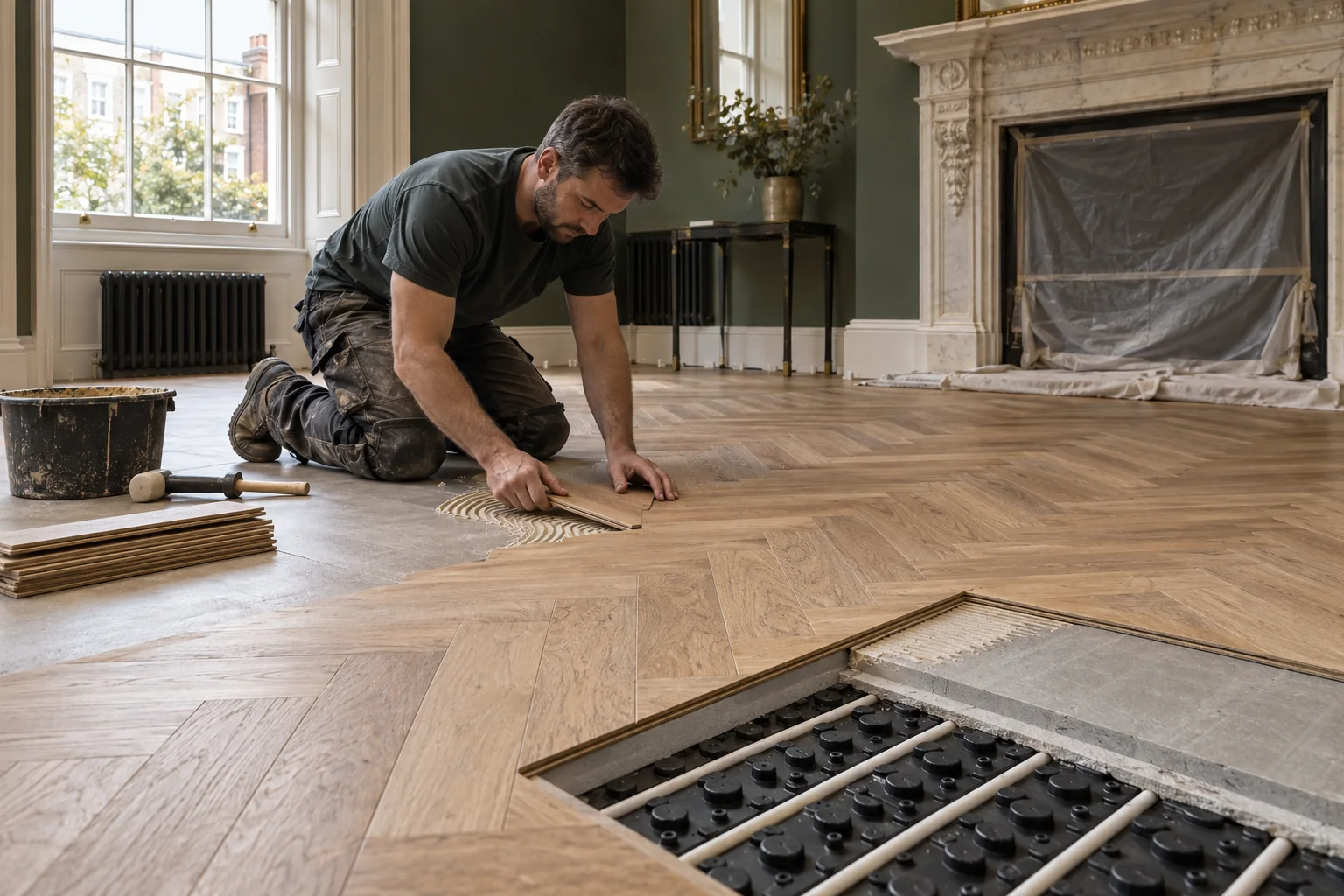

The finished surface is part of the design
Engineered oak, stone, marble and other Chelsea floor finishes.
Engineered timber can work well above UFH where the exact board, adhesive and installation method are approved and temperature limits are reflected in the controls.
Stone and porcelain transfer heat effectively, but the support, adhesives, movement details and any decoupling layer still form part of the heating assembly. LVT, laminate, carpet and underlay must also remain within the permitted thermal resistance.
Engineered timberMarble & stonePorcelain & LVTCarpet & underlay
Specified as a complete system
A complete Wunda system—designed before it is ordered.
PEP works with Wunda Group to provide complete, correctly matched underfloor heating packages at highly competitive project prices.
The pipe or panel is only one component. Circuit lengths, spacing, manifold position, pumps or blending controls, actuators, wiring centres, thermostats and heat-source connections are coordinated before materials arrive.
We remain responsible for integrating the system with the property—we do not deliver a collection of components and leave separate trades to work out how they should operate together.
Panels & white pipeManifold & actuatorsWiring centresThermostats & sensors

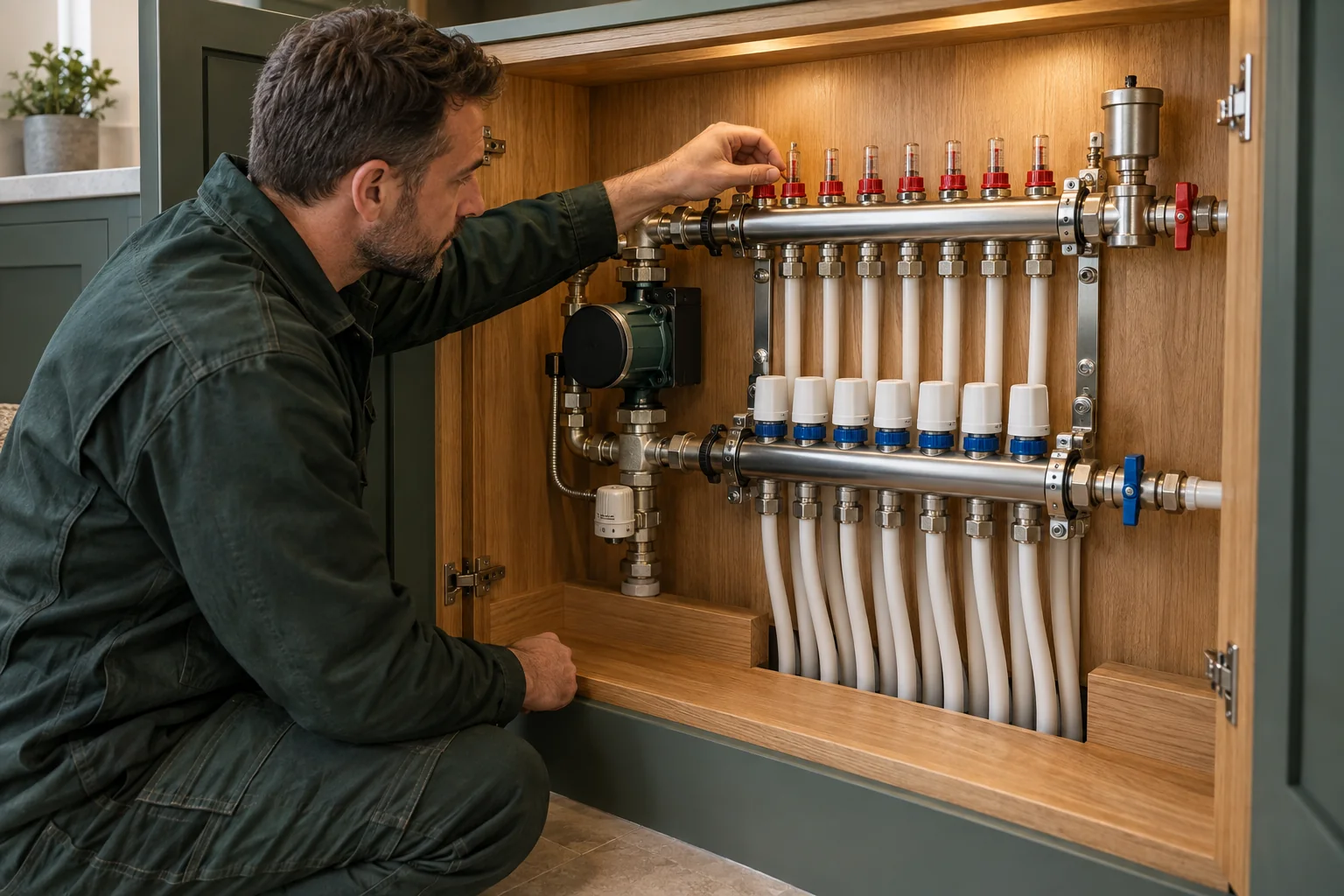

Hydraulics and controls
Manifold, boiler, heat pump and mixed heating systems.
The manifold needs efficient routes to every circuit and permanent access after the refurbishment. Its position is agreed alongside joinery and room layouts—not discovered after pipes are installed.
Each zone then receives the temperature and schedule it needs. Where radiators and UFH operate together, the hydraulic arrangement and controls must respect their different temperatures and response characteristics.
01Calculated property heat demand
02Boiler or heat-pump output
03Flow and return temperatures
04Existing radiator circuits
05Pumps, zoning and control logic
06Accessible manifold and plant arrangement

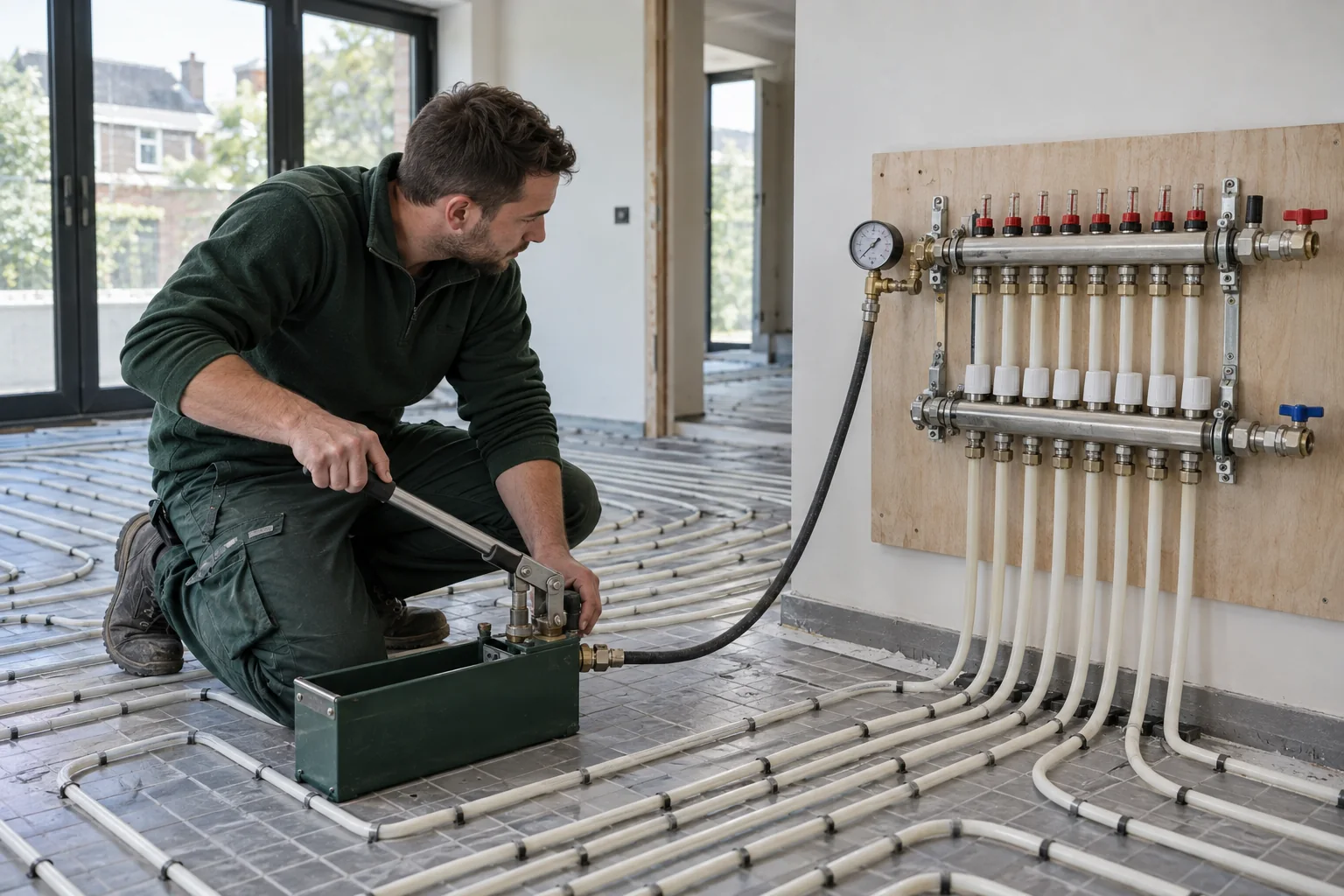

Proved before it disappears
Testing and commissioning are installation stages—not final decorations.
Water circuits are filled, vented and pressure-tested before they are concealed. Electric systems are tested during installation and before the finished floor is completed.
At commissioning, water circuits are balanced, control sequences are proved and the completed system is explained. Relevant test results and operating information are provided at handover.
Pressure testControlsBalanceHandover
From drawing to warm floor
One coordinated route through seven project stages.
Floor construction, heating design, plumbing, electrical controls and finishing interfaces are agreed before each layer closes the next one in.
Project review
Postcode, plans, room schedule and proposed finishes.
Site survey
Floor build-up, heat source, routes, manifold and electrical provision.
Heat design
Room requirements, active areas, operating temperatures and zones.
Specification
Pipe layouts, equipment, thermostats and construction interfaces.
Installation
Preparation, components, filling, venting and test stages.
Controls
Actuators, heat-source interfaces and floor completion sequence.
Handover
Balancing, functional proof, operating information and results.
One accountable team
Why Chelsea projects benefit from coordinated PEP delivery.
An underfloor heating installation crosses several trade boundaries. The heating design affects the floor. The manifold needs plumbing routes and joinery space. Thermostats and actuators require electrical planning. The boiler or heat pump must respond correctly to zone demand.
PEP brings those interfaces into one scope. Heating and Gas Safe work, fixed electrical work through our NICEIC discipline, plumbing, controls and testing follow one project programme.
With 16 years of London experience, we understand that successful work in Chelsea depends as much on preparation, sequencing and protection of the finished property as on the components being installed.
Local Chelsea coverage
Underfloor heating across SW3 and SW10.
We cover Chelsea and neighbouring areas where they form part of the same project or service route.
Before work begins
Useful answers for a Chelsea UFH project.
Floor construction, final finish, heat source and building arrangements usually determine the most sensible route.
Can wet underfloor heating be retrofitted in a Chelsea townhouse?
Often, yes. The suitable method depends on the existing floor construction, available height, heat loss and final finish. One property may use low-profile overfloor heating downstairs, a joisted solution elsewhere and retained radiators upstairs.
Can UFH be installed in a mansion-block apartment?
Potentially, but the floor construction, acoustic requirements, heating source, access and lease conditions must be checked. Freeholder or building-management approval may also be required.
Will low-profile UFH still raise the floor?
Yes. A low-profile panel reduces the required build-up but does not eliminate it. Preparation, levelling, decoupling, adhesive and the finished floor must all be included.
Can underfloor heating be installed below engineered oak or herringbone flooring?
Yes, where the chosen timber product, adhesive and installation method are approved for UFH. Maximum surface temperature and moisture-conditioning requirements must be followed.
Is marble suitable for underfloor heating?
Marble and natural stone can transfer heat effectively. The supporting floor, adhesive, movement details and complete construction still need to suit the selected finish.
Is wet or electric UFH better for a bathroom?
Electric UFH can be practical for a small isolated bathroom. Wet UFH may be preferable when the bathroom forms part of a larger water-based system. We compare heat requirement, use and construction before recommending either.
Can UFH work alongside radiators?
Yes. Mixed systems are common in multi-storey refurbishments. The radiator and floor circuits require appropriate temperatures, hydraulic design, zoning and coordinated controls.
Where will the manifold be installed?
Possible locations include a utility room, plant room, service cupboard, under-stair area or purpose-built enclosure. It needs practical pipe routes and permanent service access.
How is the system tested before the floor is covered?
Water circuits are filled, vented and pressure-tested before concealment. Electric systems are tested during installation and before floor completion. Testing continues through commissioning.
How much does underfloor heating installation in Chelsea cost?
Price depends on heated area, floor construction, number of zones, preparation, finish, controls and heat-source integration. PEP provides an individual quotation based on the property and agreed scope—not an unreliable flat rate per square metre.
Plan the heating before the finished floor is ordered
Start with the Chelsea property—not a generic kit.
Send the postcode, available drawings and proposed floor finishes. We will review the construction, system options and practical next step.
