What already exists beneath the room?
We establish whether the floor is solid, screeded, suspended timber, retained boards or a combination—and whether access, insulation and structural depth are adequate.
Underfloor heating · St John’s Wood NW8

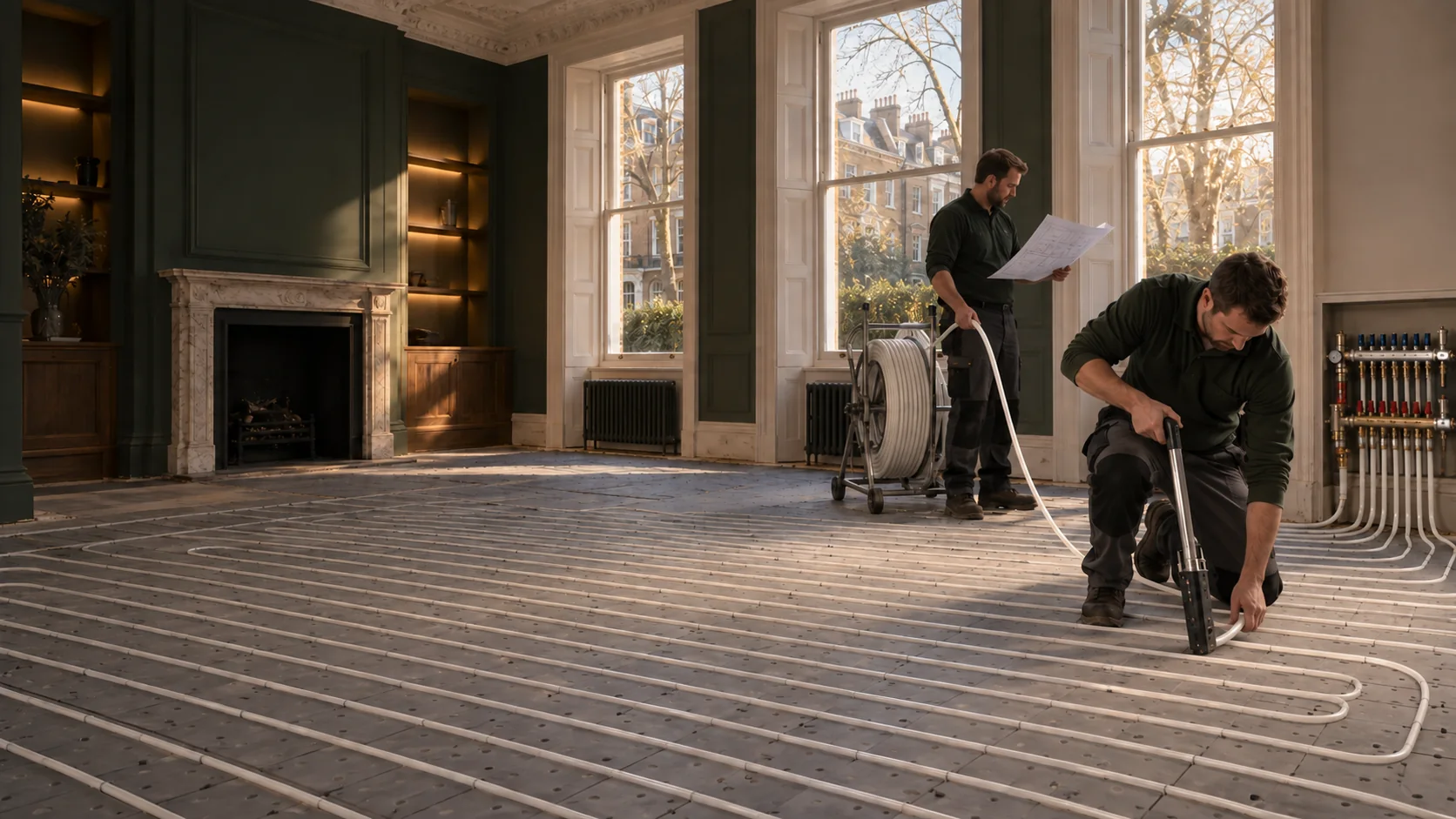

Underfloor Heating Installation in St John’s Wood, NW8
Large homes. Different floor structures. One properly coordinated heating system.
PEP designs, supplies and installs complete wet and electric underfloor heating systems for St John’s Wood villas, mansion flats, apartments, extensions, bathrooms and full refurbishments. Floor construction, finished levels, heat loss, floor coverings, the heat source, manifolds and controls are coordinated before installation begins.
01Complete Wunda systems
02Wet & electric underfloor heating
03Multi-zone controls & commissioning
Designed for the property
Not simply selected by the postcode.
A substantial house on Hamilton Terrace may combine a new lower-ground screed, retained timber floors and bathrooms that require their own electric solution. A lateral apartment near Abbey Road may need a quiet, low-profile system that respects thresholds and acoustic layers. A period property by Regent’s Park may retain parquet in one room while rebuilding the floor next door.
PEP starts with the building rather than a generic kit. We review the structure, insulation, heat loss, active floor area, intended finishes, door and stair thresholds, plant space, controls and access before specifying the system.
The result is a coordinated design that protects room proportions and original details while giving the completed heating system the output, zoning and service access the property requires.
NW8St John’s Wood & Abbey Road
4Installation methods resolved
1Coordinated PEP team
Survey before specification
The room determines the duty. The floor determines the method.
A successful design must meet the calculated demand while respecting levels, retained structure, acoustic layers and the final finish.
Can the active floor meet the heat loss?
Room demand, usable heated area, pipe spacing, floor finish and operating temperature are reviewed before UFH is treated as the principal emitter.
Where will the complete build-up fit?
Preparation, panels, pipes, acoustic layers, decoupling, adhesives and finish are included in the calculation—not only the advertised panel thickness.
How will every room and floor be supplied?
Manifold positions, routes, boiler or heat-pump compatibility, thermostats, actuators, power supplies and permanent service access are coordinated together.
Choosing the right installation method
One property may need more than one underfloor heating system.
The correct method follows the construction already beneath each room and the level available above it.

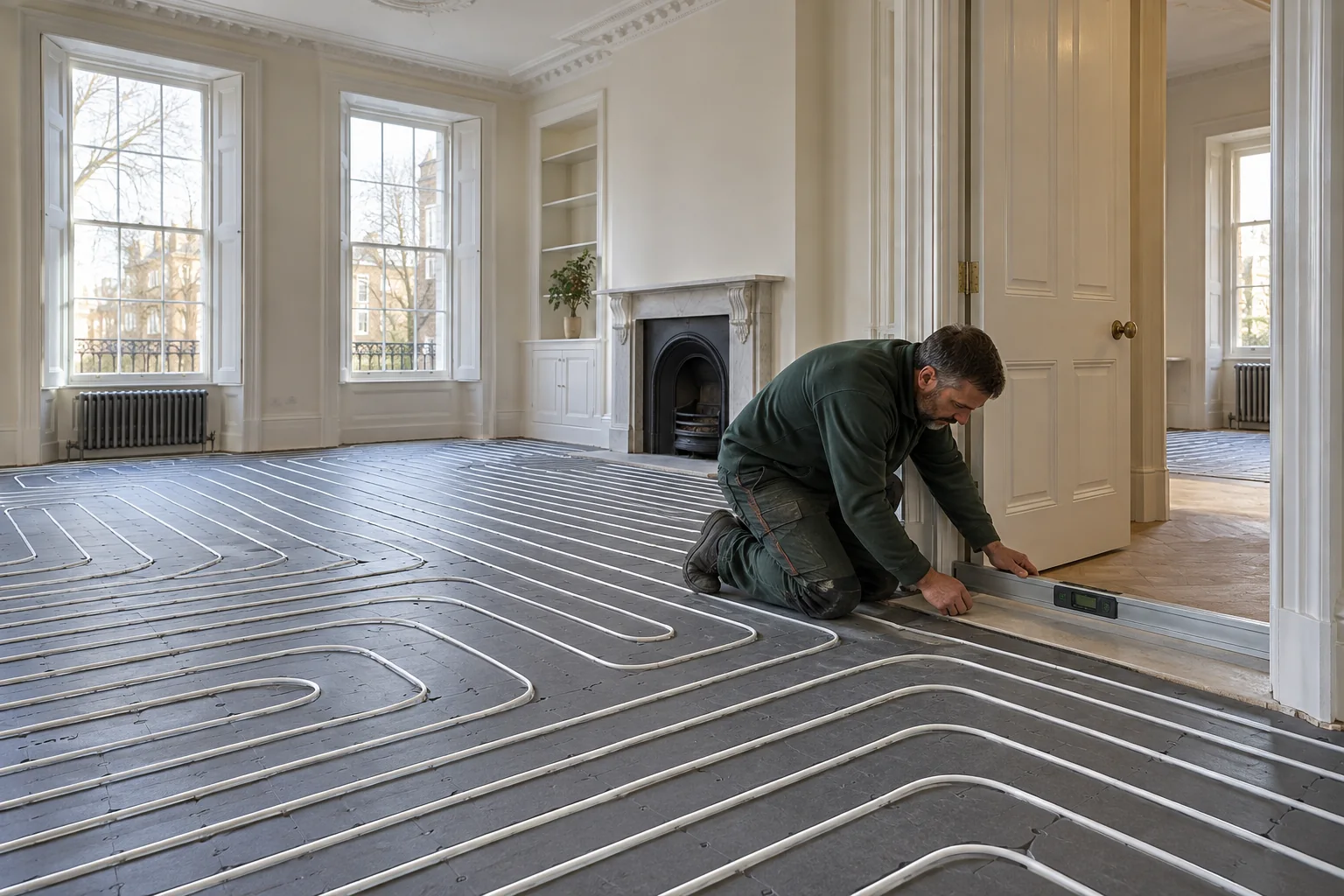

01 · Retained solid floors
Low-profile overfloor heating
Where the structural floor is sound, a low-profile water-based system can provide a responsive retrofit route without excavating the complete slab. Preparation, panel, pipe, decoupling, adhesive and finish are included in the finished-level calculation. The detail is particularly valuable where stairs, doors, skirtings or adjoining rooms cannot absorb a careless rise.

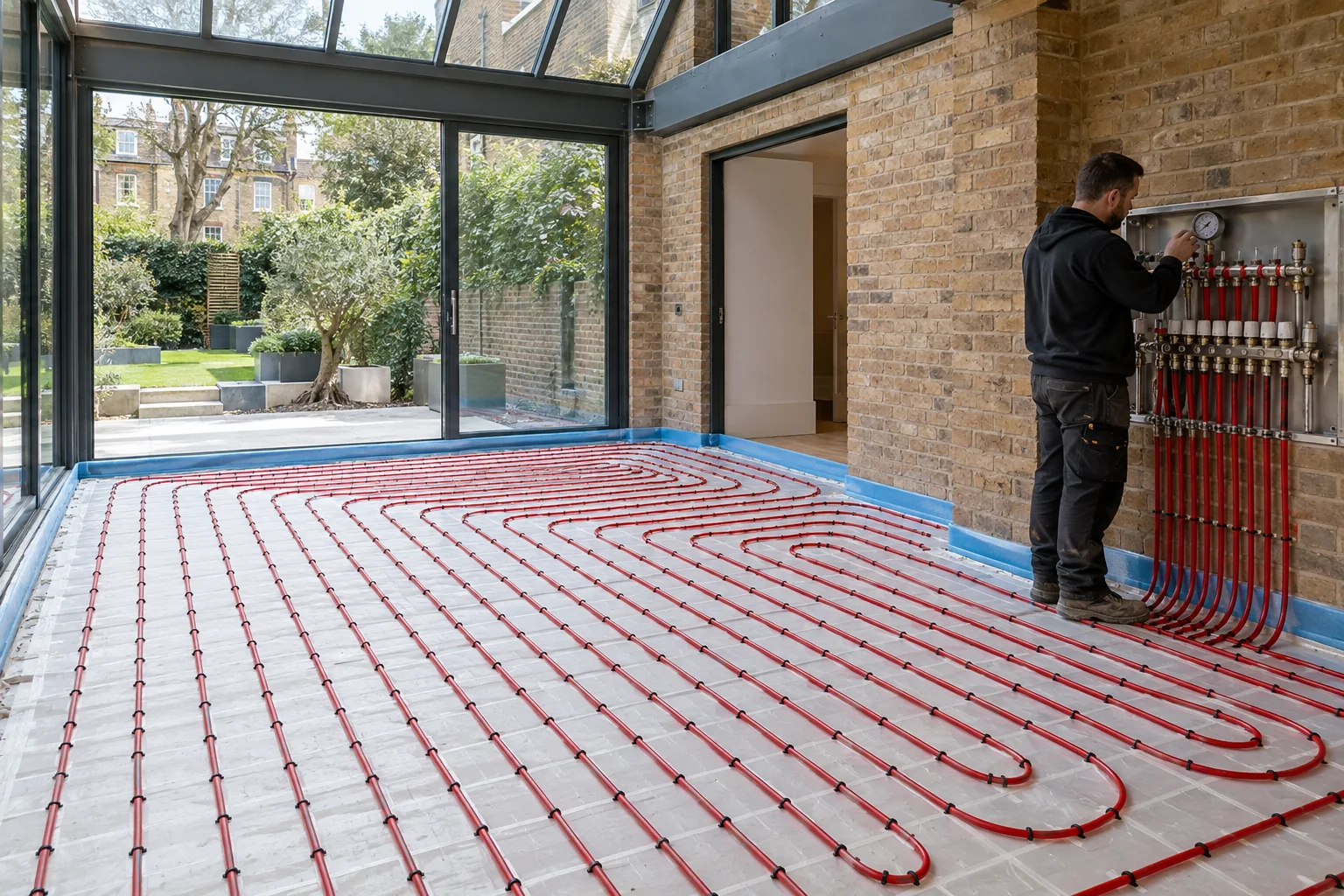

02 · New and rebuilt floors
Screed underfloor heating
Extensions, lower-ground reconstruction and complete floor replacement can provide the depth for pipework fixed over insulation and incorporated into a new screed. Insulation continuity, pipe spacing, perimeter details, movement joints, pressure testing and the final screed specification are treated as one assembly.

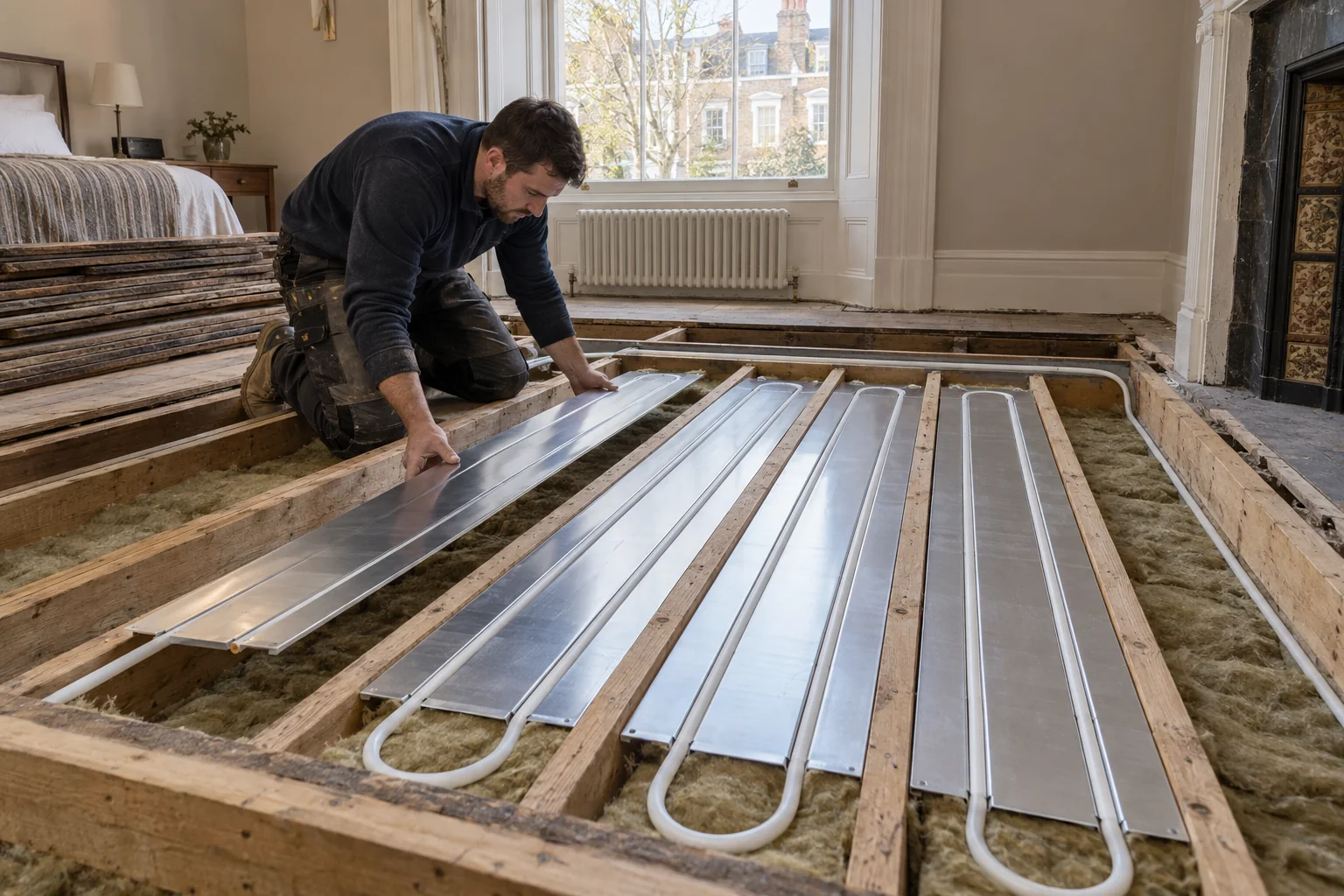

03 · Suspended timber floors
Joisted underfloor heating
Heat spreader plates, correctly supported pipe runs and insulation can form an effective system beneath retained boards. Joist direction, pipe turns, structural restrictions, floorboard reinstatement and future access are resolved before the floor is closed.

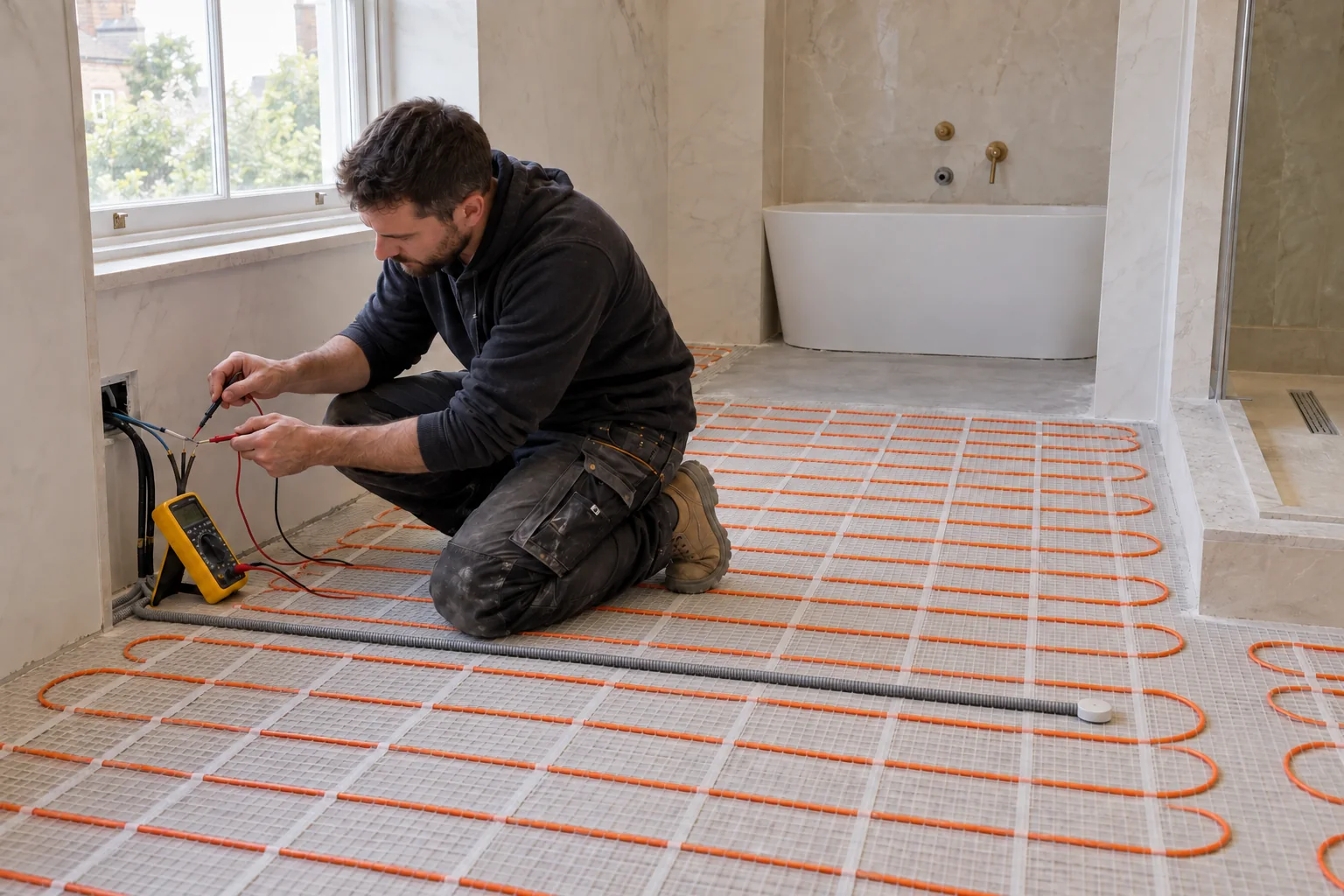

04 · Bathrooms and selected rooms
Electric underfloor heating
Electric mats or loose cable can provide targeted comfort in bathrooms, en suites and compact tiled rooms where extending a water circuit would be disproportionate. Fixed furniture, wet zones, sensor position, thermostat, electrical protection and staged resistance readings are documented before covering.
Specified as a complete system
A complete Wunda system—planned before it is ordered.
PEP works with Wunda Group to provide correctly matched underfloor heating packages at highly competitive project prices. Panels and pipework are only one part of the completed installation.
Manifolds, actuators, wiring centres, thermostats, pumps, blending controls, sensors and heat-source connections must work together. We review the plans, room duties, floor constructions and control philosophy before equipment is ordered.
Where several floors or construction types meet, the schedule records which circuit and method serve each room. The installer, electrician, main contractor and client then work from one coordinated design rather than a generic materials list.
Panels & white pipeManifolds & actuatorsWiring centresThermostats & sensors

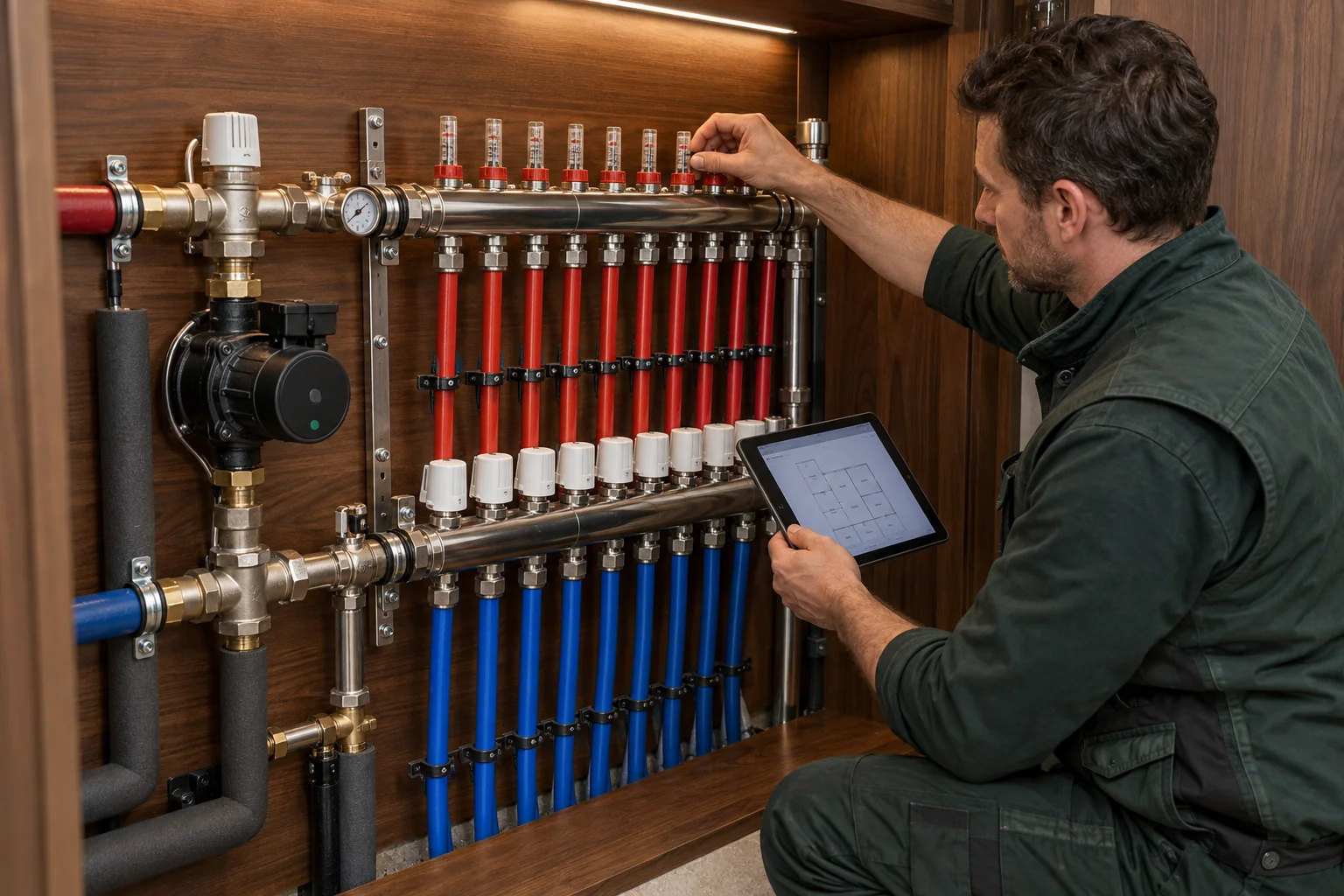

Multi-zone homes
Each room can respond without fragmenting the whole system.
Larger St John’s Wood homes often contain rooms with very different patterns of use: principal living spaces, bedrooms, dressing rooms, guest suites, a study, a cinema room and lower-ground areas. A single thermostat cannot represent them all.
We plan circuit lengths, manifold positions, thermostats, actuators and wiring centres around the layout and programme. Zone demand must then communicate correctly with the boiler, heat pump or mixed-temperature heating system. The goal is useful independent control without creating short cycling, conflicting commands or inaccessible equipment.
01Calculated room heat demand
02Practical manifold locations
03Balanced circuit lengths
04Room-by-room thermostats
05Heat-source demand logic
06Permanent service access

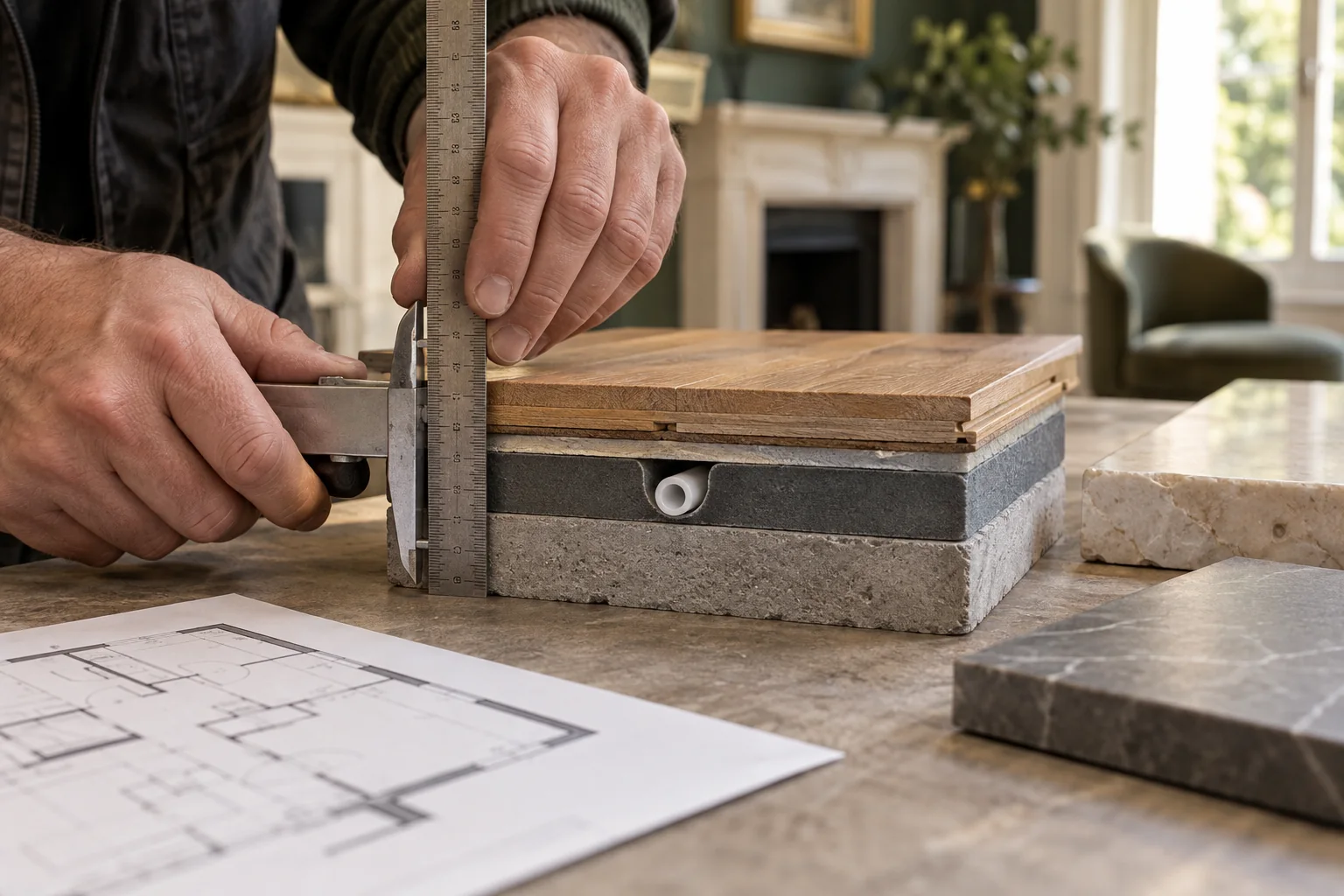

Floor finish and heat output
Parquet, engineered timber, stone and tile are part of the calculation.
Tile and stone transfer heat efficiently. Engineered timber and parquet can also work well when the manufacturer approves the product for UFH and its thermal resistance, temperature limit, moisture requirements and fixing method are built into the design. Carpet, underlay, LVT and laminate each introduce their own limits.
The finish changes how heat reaches the room, so it cannot be selected after the pipe layout has been finalised. Product data, adhesives, levelling, expansion, curing and the commissioning sequence all belong in the same floor build-up.
Stone & tileEngineered timberParquet & LVTCarpet & underlay
DesignPressure testBalanceHandover
From survey to handover
One coordinated route through ten project stages.
Each layer is reviewed before it closes the next one in—from the structure and insulation to pipework, controls, floor finish and final commissioning.
Initial review
NW8 postcode, plans, rooms, proposed finishes and project stage.
Site survey
Floor build-ups, heat source, routes, access and electrical provision.
Heat loss
Room demand, active floor area, temperatures and supplementary emitters.
System selection
Low-profile, screed, joisted or electric method chosen per room.
Coordinated quote
Defined preparation, components, controls, interfaces and exclusions.
Preparation
Substrate, insulation, levels, access and property protection.
Installation
Pipework or cable, manifolds, actuators, thermostats and wiring.
Pre-cover tests
Pressure or electrical test records before the floor is completed.
Floor completion
Agreed covering sequence, curing conditions and protection.
Commissioning
Balancing, functional proof, operating information and handover.
Boiler, heat pump or mixed system?
The heat source must suit the floor—and the rest of the house.
Underfloor heating works at different temperatures and response times from conventional radiators. The complete hydraulic and control arrangement determines whether the two can operate efficiently together.
Boiler
Existing or replacement boiler
Available capacity, system layout, pumps, flow temperatures and demand controls are checked before compatibility is confirmed.
Heat pump
Low-temperature design
Room heat loss, active floor area and design temperatures must support the intended heat-pump operation rather than relying on a generic claim.
Mixed
Underfloor heating and radiators
Where radiators remain, their higher temperature and quicker response are coordinated with the manifold, zoning and heat-source demand logic.
One accountable team
Heating, plumbing and electrical controls belong to one project.
Underfloor heating crosses several trade boundaries. The heat design affects the floor build-up. The manifold needs plumbing routes and joinery space. Thermostats, actuators and wiring centres require electrical planning. The boiler or heat pump must respond correctly to zone demand.
PEP brings those interfaces into one scope. Heating and Gas Safe work, fixed electrical work through our NICEIC discipline, plumbing, controls, testing and commissioning follow one coordinated programme. Related work can be linked with our central heating installation, St John’s Wood plumbing and local electrical services.
With London experience since 2010, we understand that work in occupied, managed and carefully finished St John’s Wood properties depends on preparation, sequencing and protection as much as the equipment below the floor.
Local St John’s Wood coverage
Underfloor heating across NW8 and nearby streets.
We cover St John’s Wood and adjoining locations where they form part of the same project or practical service route.
Before work begins
Useful answers for a St John’s Wood UFH project.
Floor construction, heat loss, final finish and the wider building determine the most sensible route.
Is underfloor heating suitable for a large St John’s Wood house?
Yes, when each floor and room is designed around its heat loss, usable heated area, floor construction and control requirements. Large homes often benefit from carefully planned multi-zone systems rather than one blanket control.
Can underfloor heating be retrofitted without removing the structural floor?
Often it can. A low-profile overfloor system may be suitable where the retained substrate is sound, but the complete build-up—including preparation, panel, levelling, adhesive and finish—and every threshold must be checked first.
Should I choose wet or electric underfloor heating?
Wet systems usually suit larger areas, whole floors and principal rooms. Electric systems can suit isolated bathrooms and compact tiled spaces. The correct choice depends on duty, area, construction, running pattern and available build-up.
Can underfloor heating be installed under parquet or engineered timber?
Yes, provided the flooring product is approved for UFH and its thermal resistance, temperature limit, moisture and installation requirements are included in the design. The flooring manufacturer’s instructions remain important.
Can the system work with my existing boiler?
Sometimes. We review the boiler, hydraulic arrangement, calculated demand, temperatures, pumps and controls before confirming compatibility. Where radiators remain, their different operating requirements must also be coordinated.
Can underfloor heating work with a heat pump?
Yes, where the property heat loss, active floor area and design temperatures support the intended heat-pump operation. The answer should come from calculations for the actual building, not from a general assumption.
Can each room or floor have independent temperature control?
Yes. A multi-zone system can use room thermostats, manifold actuators and wiring centres, subject to the agreed control strategy and heat-source interface. Circuit design and manifold locations still need to remain practical.
Do apartment projects need freeholder or managing-agent permission?
Lease conditions vary. Alterations affecting floors, structure, acoustic layers, common areas or communal arrangements may require approval before disruptive work begins. This should be confirmed for the particular property.
How much does underfloor heating installation in St John’s Wood cost?
Cost depends on heated area, floor construction, preparation, insulation, number of zones, controls, heat-source integration, access and the chosen finish. PEP provides a project-specific quotation for the defined scope rather than a misleading generic rate.
Plan the heating before the floor is closed
Discuss your St John’s Wood underfloor heating project.
Send the NW8 postcode, available drawings, known floor construction, intended finishes, heat-source details and current project stage. We will review the likely system options and the practical next step.
