What remains beneath the room?
We establish whether the floor is solid, screeded, suspended timber, retained boards or a combination—and whether access and insulation are adequate.
Underfloor heating · Maida Vale W9

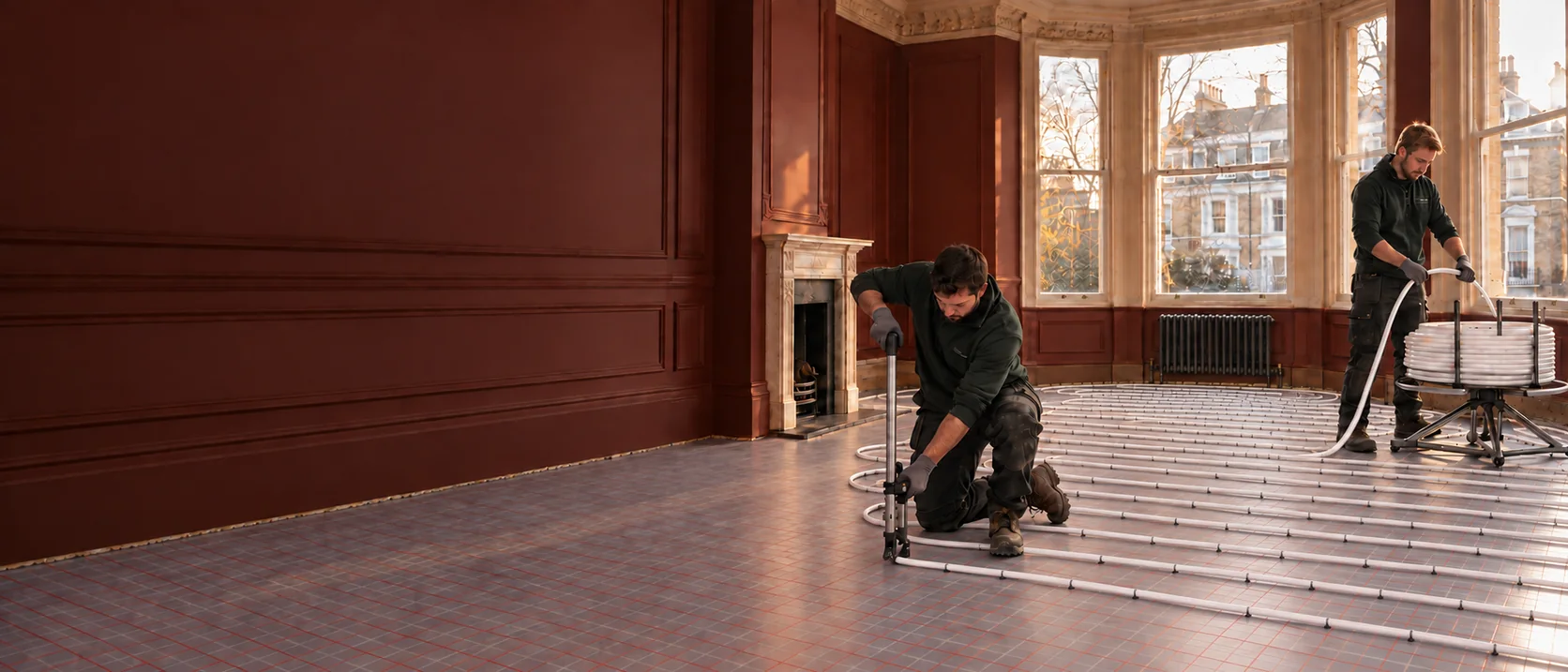

Underfloor Heating Installation in Maida Vale, W9
Different floors. One properly designed heating system.
PEP designs, supplies and installs complete wet and electric underfloor heating systems for Maida Vale mansion flats, period homes, lower-ground properties and residential refurbishments. From the first floor-level calculation to the manifold, controls, testing and commissioning, the installation is planned as one complete heating system.
01Complete Wunda systems
02Wet & electric underfloor heating
03Design, installation & commissioning
Designed for the building
Warmth planned from the floor upwards.
A Maida Vale refurbishment can bring several very different floor constructions into one project: a retained solid floor, suspended timber rooms, a rebuilt lower-ground level and tiled bathrooms. Each needs its own installation answer.
PEP starts with the building rather than a generic kit. We review floor build-up, heat loss, active floor area, intended finishes, door and stair thresholds, plant space, controls and access before specifying the system.
The result is a coordinated design that protects room proportions and original details while giving the completed heating system the output and control the property requires.
W9Maida Vale & Little Venice
4Floor constructions resolved
1Coordinated PEP team
Survey before specification
Every millimetre of floor build-up has a consequence.
The design must work at thresholds, stairs, skirtings, kitchens and the junctions between retained and rebuilt floors.
Can the active floor meet the heat loss?
Room demand, usable heated area, pipe spacing, floor finish and operating temperature are reviewed before UFH is treated as the principal emitter.
Where will the complete build-up fit?
Preparation, panels, pipes, acoustic layers, decoupling, adhesives and finish are included in the calculation—not only the headline panel thickness.
How will each zone be supplied?
Manifold position, routes, boiler or heat-pump compatibility, thermostats, actuators, power supplies and service access are coordinated together.
Four constructions, four answers
Match the underfloor heating system to the construction.
The right method delivers the required output without creating avoidable problems at doors, stairs, skirtings or finished-floor junctions.

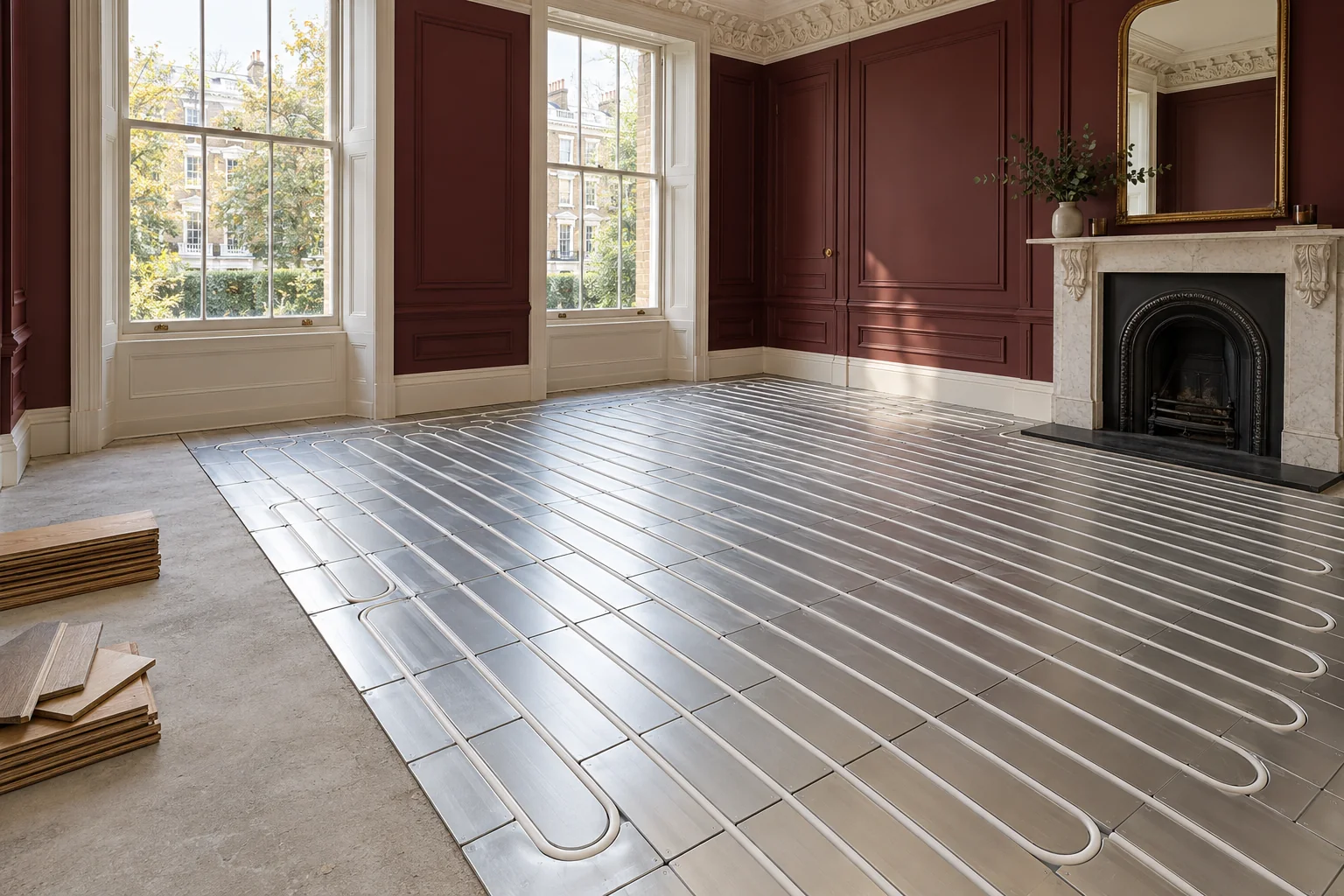

01 · Retained solid floors
Low-profile overfloor heating
Where the existing structural floor is sound, a low-profile water-based system can provide a responsive retrofit route without excavating the complete floor. Preparation, panel, decoupling, adhesive and finish are included in the level calculation.

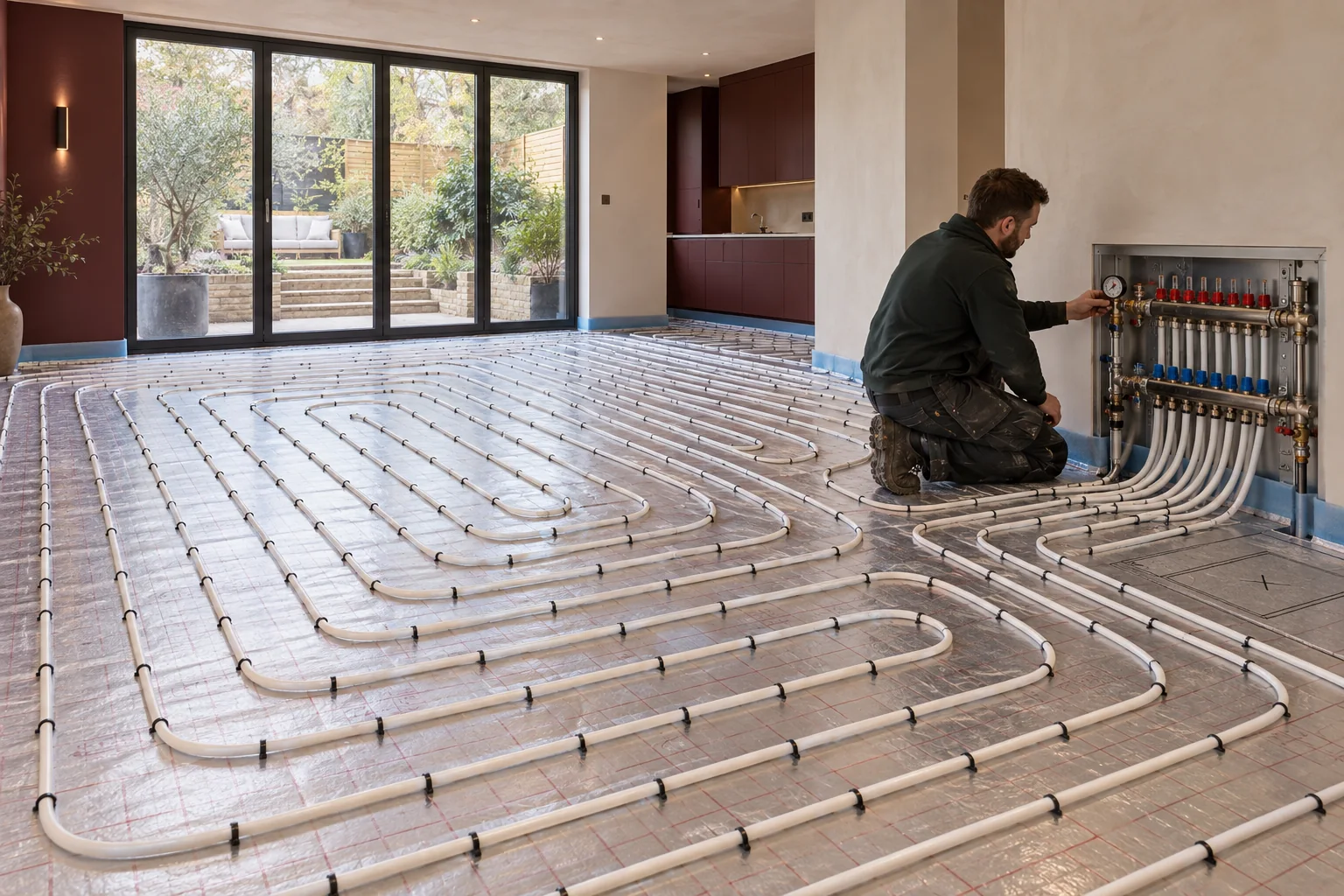

02 · New and rebuilt floors
Screed underfloor heating
Where an extension, basement or rebuilt floor provides sufficient depth, pipework can be fixed over insulation and incorporated into a new screed. Insulation, spacing, movement details and screed specification are coordinated as one assembly.

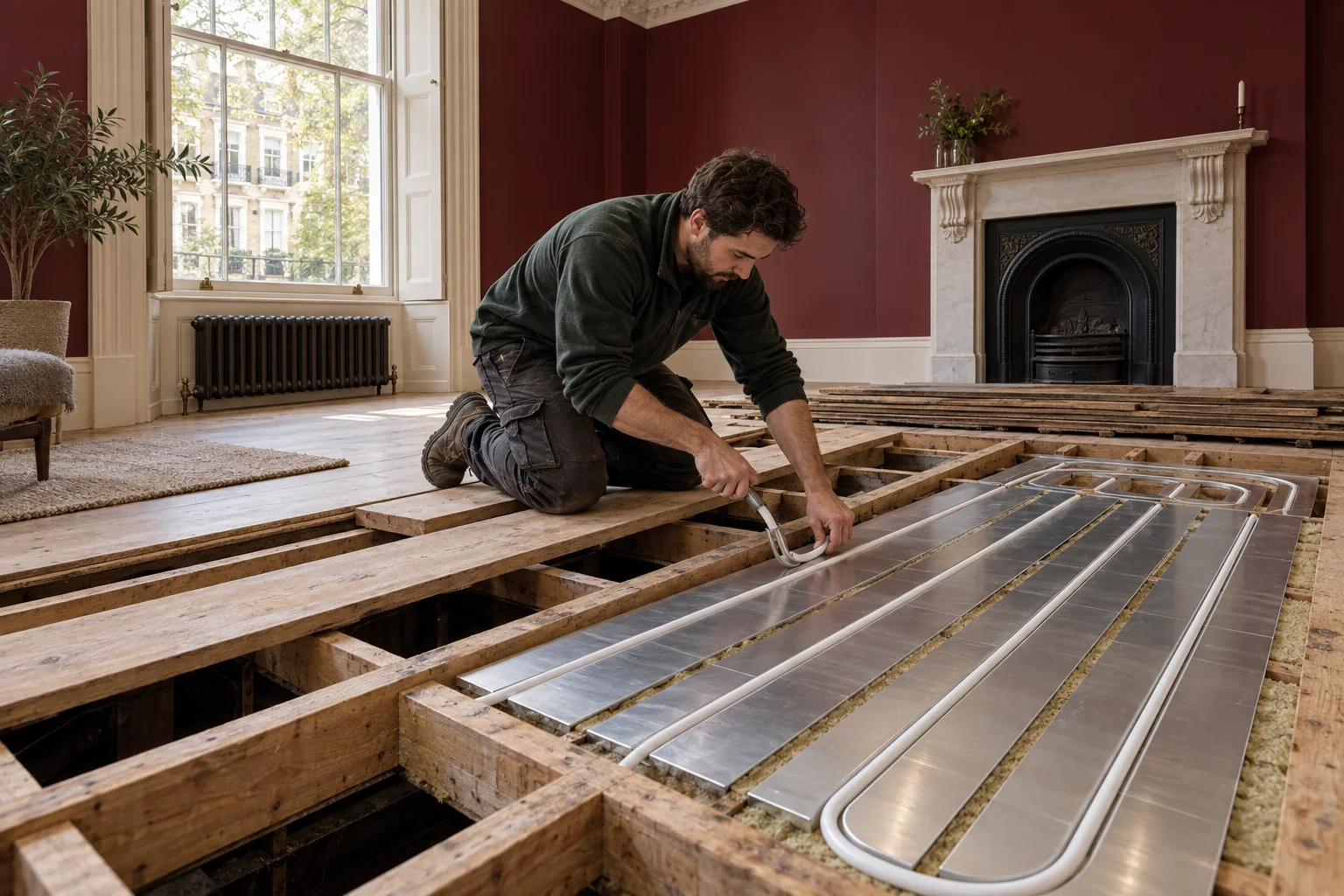

03 · Suspended timber floors
Joisted underfloor heating
Heat spreader plates, supported pipe runs and insulation can form an efficient system beneath retained boards. Joist direction, pipe turns, notching restrictions and future access are resolved before the floor is closed.

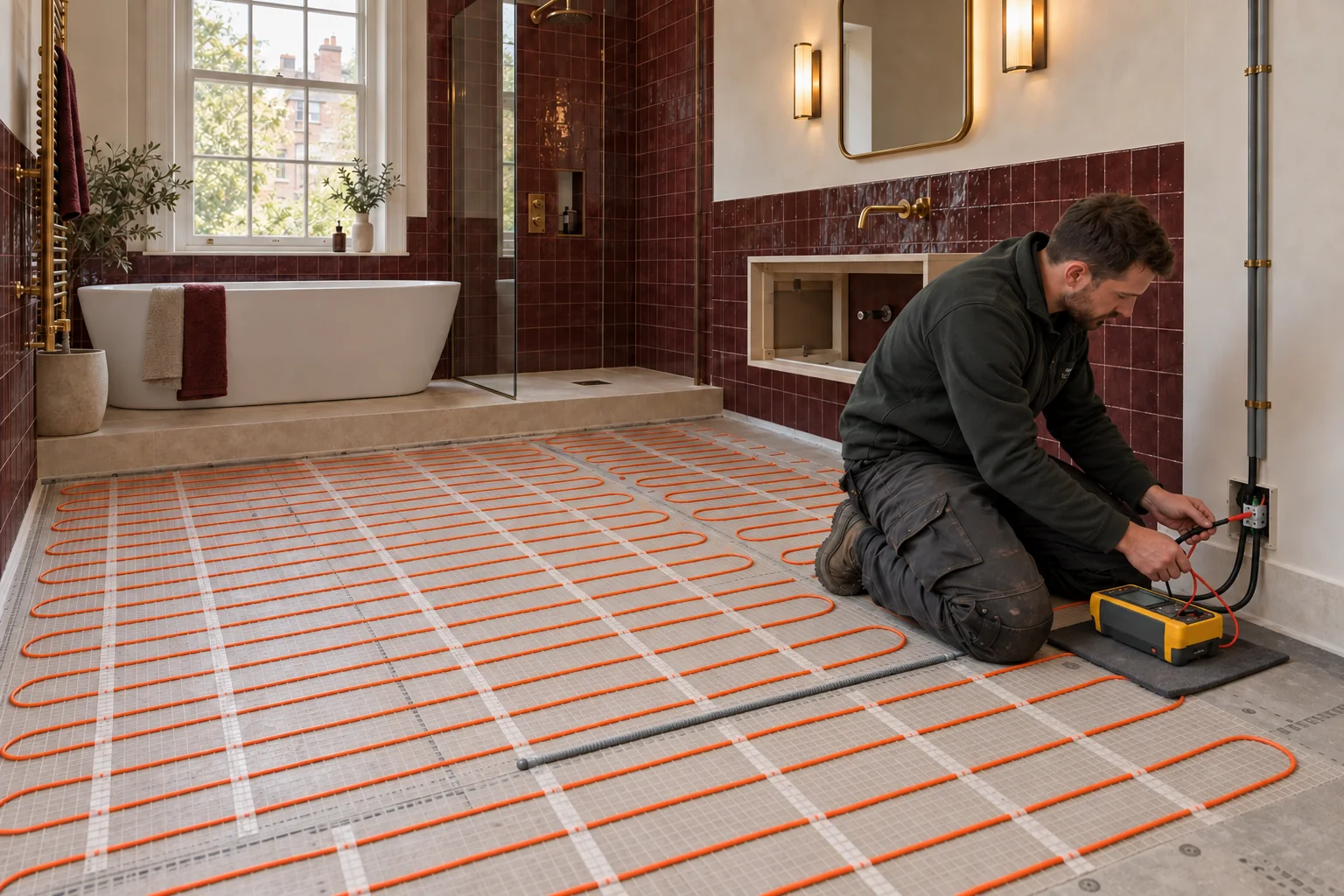

04 · Bathrooms and selected rooms
Electric underfloor heating
Electric mats or loose cable can provide targeted comfort in bathrooms, en suites and compact tiled rooms. Fixed furniture, wet zones, sensor position, thermostat, electrical protection and staged test results are documented before covering.
Specified as a complete system
A complete Wunda system—designed before it is ordered.
PEP works with Wunda Group to provide correctly matched underfloor heating packages at highly competitive project prices. Panels and pipework are only one part of the finished system.

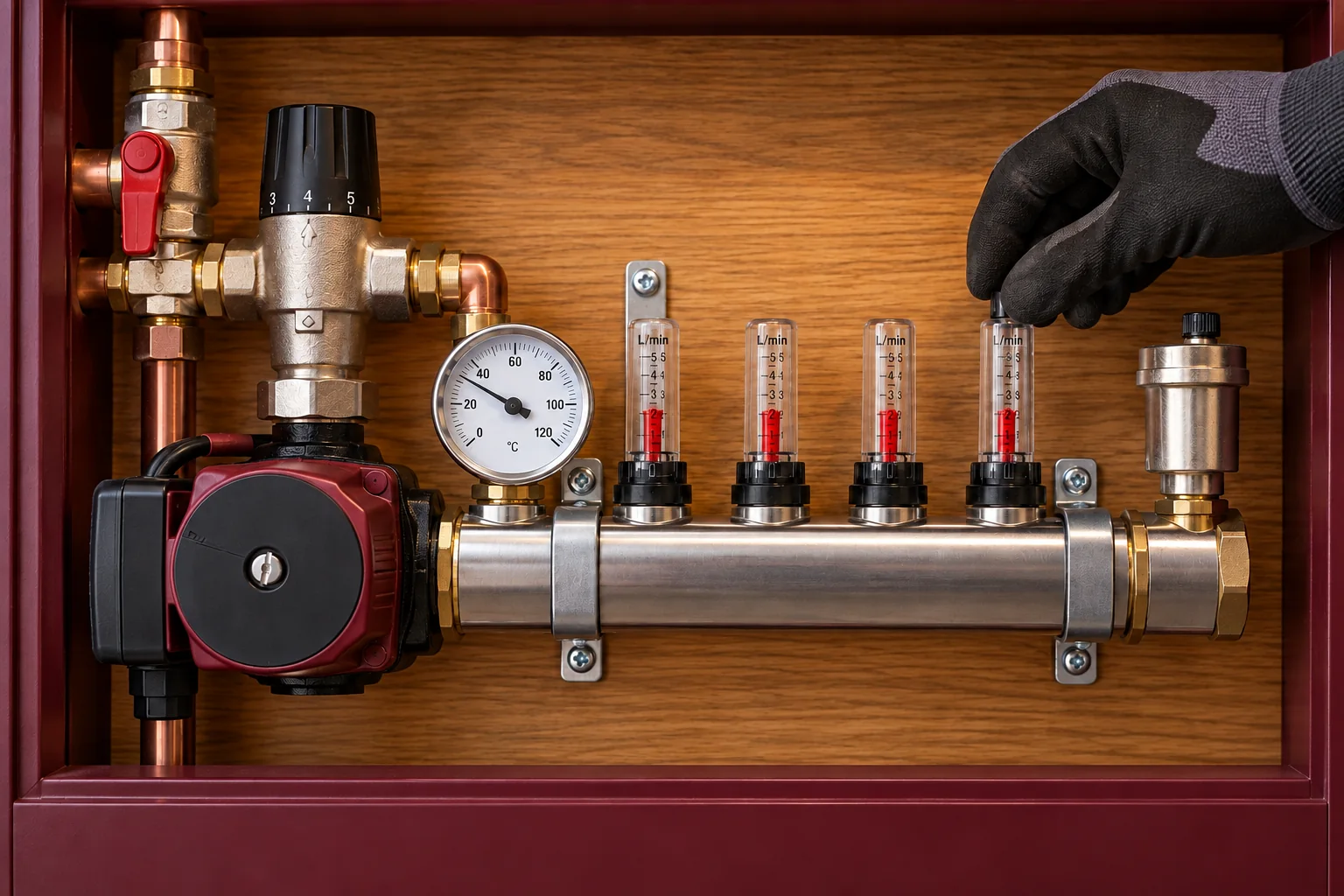

Manifolds, actuators, wiring centres, thermostats, pumps, blending controls, sensors and heat-source connections must work together. We review the plans and floor constructions before ordering.
Where several floor constructions meet, the schedule records which system serves each room, creating one coordinated basis for the installer, main contractor and client.
Panels & white pipeManifold & actuatorsWiring centresThermostats & sensors
Heat source and controls
A warm floor still needs the right heat behind it.
The boiler or heat pump, pumps, mixing controls, manifold and room zones must be designed as one system. A floor circuit cannot perform correctly if the available flow temperature, hydraulic arrangement or controls are unsuitable.
Where radiators remain elsewhere in the property, their different temperatures and response times are addressed in the zoning and control strategy. The manifold is positioned for efficient routes and permanent service access.
01Calculated room heat demand
02Boiler or heat-pump compatibility
03Flow and return temperatures
04Existing radiator circuits
05Pumps, zoning and control logic
06Accessible manifold arrangement

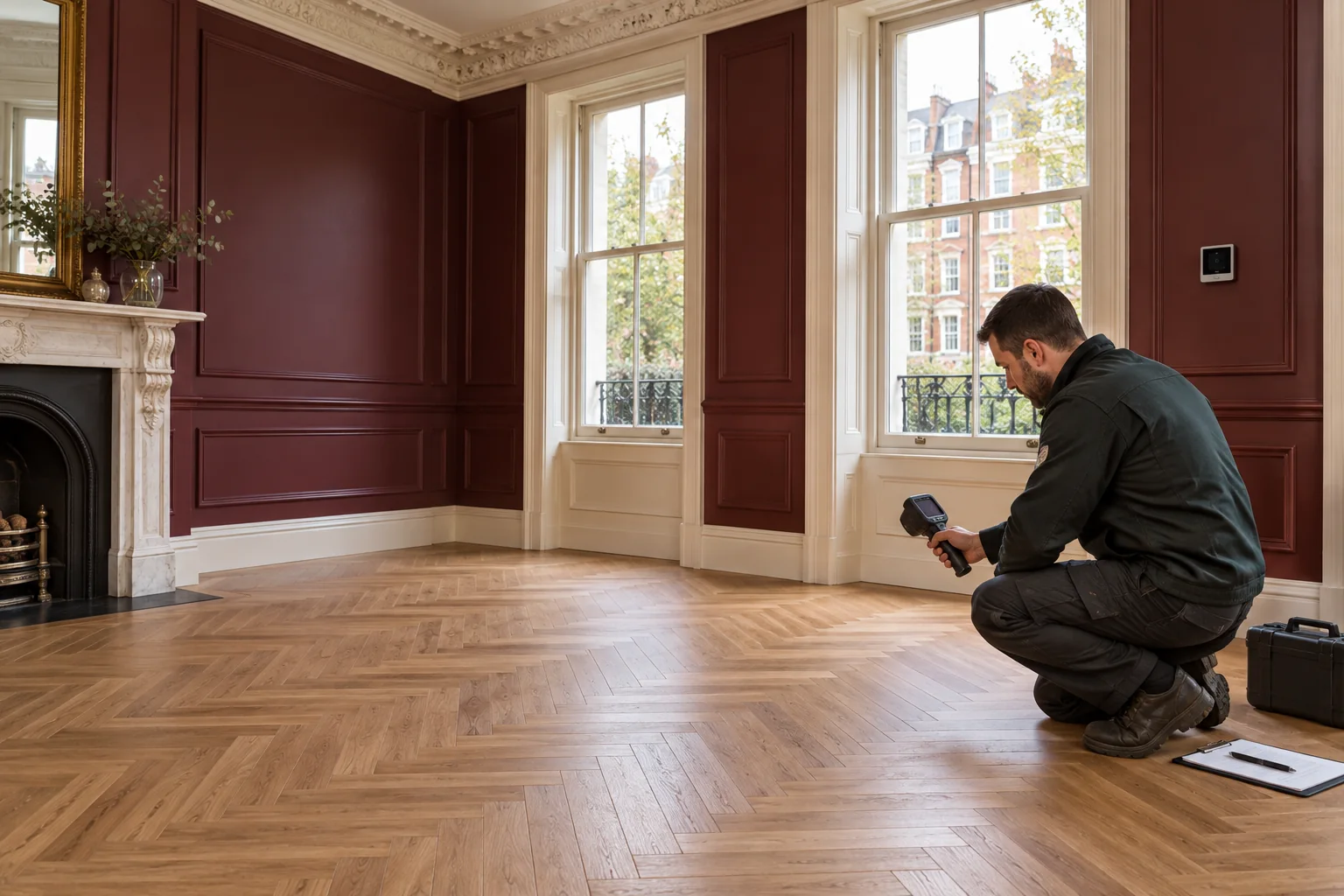

Floor finish and final proof
The finish is part of the heating design.
Tile and stone transfer heat efficiently, while engineered timber, LVT, laminate, carpet and underlay each introduce their own thermal and temperature limits. Product approval, adhesive, moisture, curing, levelling and expansion details all belong in the design.
Water circuits are filled, vented and pressure-tested before concealment. During commissioning, circuits are balanced, control sequences are proved and the completed floor response is checked before handover.
Tile & stoneEngineered timberLVT & laminateCarpet & underlay
Pressure testControlsBalanceHandover
From survey to handover
One coordinated route through eight project stages.
Each layer is reviewed before it closes the next one in—from the structural floor and insulation to pipework, controls and final finish.
Initial review
Postcode, plans, rooms, proposed finishes and project stage.
Site survey
Floor build-ups, heat source, routes, access and electrical provision.
Heat design
Room demand, active floor area, temperatures and zones.
Coordinated quote
Defined systems, preparation, components, controls and interfaces.
Preparation
Substrate, insulation, levels and property protection.
Installation
Pipework or cable, manifold, actuators, thermostats and wiring.
Testing
Pressure or electrical tests before the floor is completed.
Commissioning
Balancing, functional proof, operating information and handover.
Wet or electric?
Select by area, duty and construction—not habit.
A heat-loss assessment establishes whether the usable heated floor can meet the room requirement and whether another emitter is needed.
Water-based
Principal rooms and larger areas
Usually the stronger option for living areas, whole floors and multi-zone systems integrated with a boiler or heat pump.
Electric
Selected compact rooms
Practical for isolated bathrooms, en suites and tiled spaces where extending a water system would add disproportionate disruption.
Combined
Different systems, one control plan
Wet heating in principal rooms and electric floor warming in selected bathrooms can work together when each has a defined duty.
One accountable team
Heating, plumbing and electrical controls belong to one project.
Underfloor heating crosses several trade boundaries. The heat design affects the floor build-up. The manifold needs plumbing routes and joinery space. Thermostats, actuators and wiring centres require electrical planning. The heat source must respond correctly to zone demand.
PEP brings those interfaces into one scope. Heating and Gas Safe work, fixed electrical work through our NICEIC discipline, plumbing, controls, testing and commissioning follow one coordinated programme.
With London experience since 2010, we understand that successful work in occupied and carefully finished Maida Vale properties depends on preparation, sequencing and protection as much as the equipment below the floor.
Local Maida Vale coverage
Underfloor heating across W9 and neighbouring streets.
We cover Maida Vale and nearby areas where they form part of the same project or practical service route.
Before work begins
Useful answers for a Maida Vale UFH project.
Floor construction, heat loss, final finish and the wider building determine the most sensible route.
Is underfloor heating suitable for a Maida Vale mansion flat?
It can be. Floor construction, available build-up, insulation, heat loss, lease conditions and acoustic requirements must be assessed before the system is selected.
How much floor height does a low-profile system add?
The panel is only one part of the total build-up. Preparation, levelling, decoupling, adhesive and the chosen finish all affect the final level.
Should I choose wet or electric underfloor heating?
Wet systems usually suit larger areas and principal rooms; electric systems can suit isolated bathrooms and compact tiled spaces. The decision depends on duty, area and construction.
Can underfloor heating be used beneath engineered wood?
Yes, provided the flooring product is approved for UFH and its thermal resistance, temperature limit, moisture and installation requirements are included in the design.
Can the system use my existing boiler?
Sometimes. We review the boiler, system arrangement, calculated demand, temperatures and controls before confirming compatibility.
Can underfloor heating work with a heat pump?
Yes, where the property heat loss, active floor area and design temperatures support the intended heat-pump operation.
Can each room have its own thermostat?
Yes. A multi-zone system can use room thermostats, actuators and a wiring centre, subject to the agreed control strategy and heat-source interface.
Do I need freeholder or managing-agent permission?
Leasehold conditions vary. Alterations affecting floors, structure, acoustic layers or communal arrangements may require approval before disruptive work begins.
How much does underfloor heating installation in Maida Vale cost?
Cost depends on area, construction, preparation, zones, controls and heat-source integration. PEP provides a project-specific quotation for the defined scope.
What information should I send for an initial review?
Send the W9 postcode, plans if available, room dimensions, known floor construction, intended finishes, heat-source details and the current project stage.
Plan the heating before the floor is closed
Start with the Maida Vale property—not a generic kit.
Send the W9 postcode, available drawings, floor information and intended finishes. We will review the construction, system options and practical next step.
